Occupancy Sensor

Sensing spaces

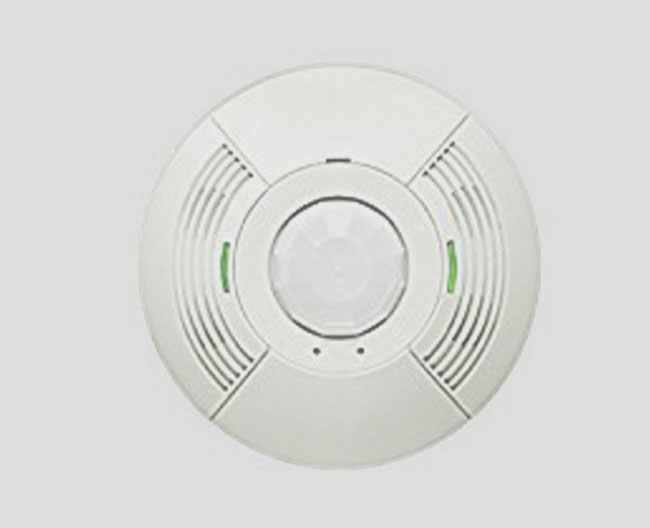

1. Lutron Wired Occupancy Sensor with Power Relay Module

• Automatically turns the lights on and off when the room is occupied and vacant.
• Dual Technology Sensor senses occupancy, Ultrasonic combined with passive infrared (PIR) provides high sensitivity, high noise immunity, and excellent false tripping immunity
• Non-Volatile Memory: settings saved in memory are not lost during power outages
• 500 to 2000 sq.ft. (46 to 186 m2) coverage when mounted on an 8 - 12 ft. (2.4 to 3.7 m) ceiling; 180° and 360° field of view
• Prevents light from turning on when there is sufficient natural light
• Sensitivity: 0 - 1,000 LUX adjustable
• Manual Override is possible

2. Lutron Wired Occupancy Sensor with Power Relay Module

• PIR (Non-Regulating –Switching Solution) Motion Sensor
• Maximum recommended mounting height: 3.0m
• Range: Cone-shaped detection pattern, 6-meter diameter
• Off delay: 1 minute – 96 hours
• Photocell: Adjustable 50-5000 lux
• Operating voltage: 230V 50Hz
• Recommended circuit protection: 10 Amps
• Maximum load: 6 Amps per output (not exceeding 10A in total)

Day Light Sensor

Smart illumination, every hour of every day

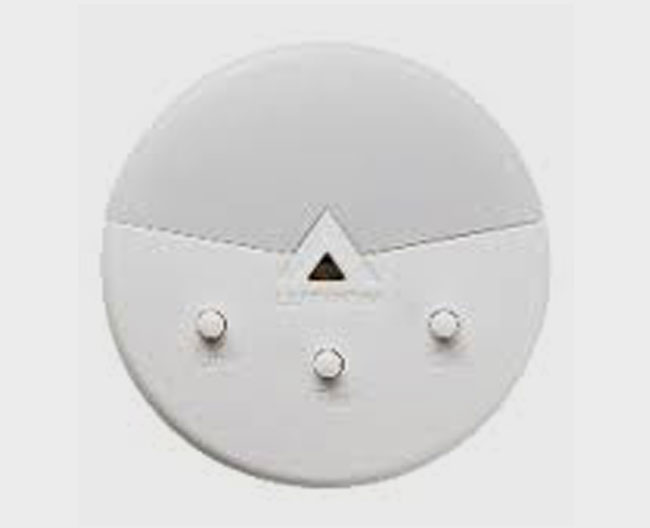

1. Lutron Wired Day Light Sensor

• Calibrated for daylight sensitivity through the lighting control system to which it is attached.
• To maintain a specific light level in the space, Day Light Sensor allows the control system to automatically dim the lights when the available daylight is high and brighten the lights when the available daylight is low.
• Compatible with ESN Modules

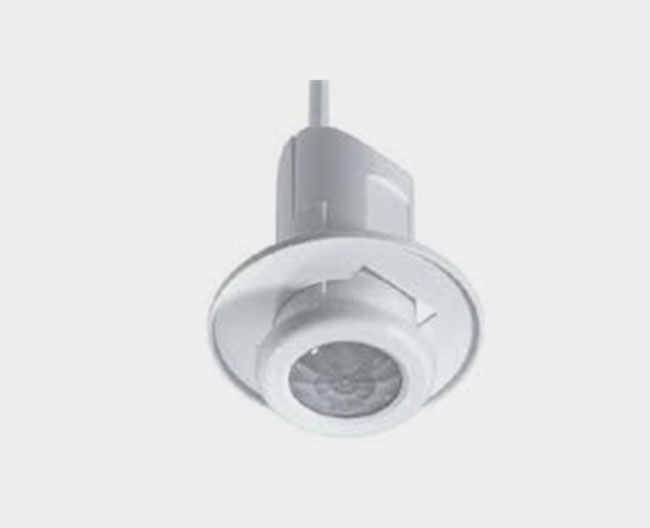

2. Honeywell Standalone Day Light Sensor

• PIR (Regulating – Dimming Solution for 1-10V /DSI /DALI) Motion Sensor.
• Maximum recommended mounting height: 3.0m.
• Range: Cone-shaped detection pattern, 6-meter diameter.
• Off delay: 1 minute – 96 hours.
• Photocell: Adjustable 50-5000 lux.
• Operating voltage: 230V 50Hz.
• Recommended circuit protection: 10 Amps.
• Maximum load: 6 Amps per output (not exceeding 10A in total).

LED Drivers

Minimum energy, maximum radiance

Digital Addressable Lighting Interface (DALI) Dimming

Load: CFL, LED Strip, LED Down Lighter with DALI Dimmable Driver.

Wiring: 3 X 1.5 Sq mm Wire for Phase, Neutral and Earth connected from Local MCB + 1.0 sq mm control Wire (in separate LV conduit) connected from DALI Module.

Features of Lutron 5 series LED drivers

• Smooth flicker- free dimming from 100% down to 5%.
• Link to Lutron Quantum Total Light Management system to monitor lighting power consumption.
• Availability of models to meet the Design Lights Consortium (DLC) allowing the user to apply for local utility rebates.
• Works on Eco system network.
• Provides precise lighting control.
• Provides immunity to electrical noise that can cause flicker at low light levels.
• Integrates into a planned or existing eco system or vive lighting control solution.
• Control terminals protected from mis-wires upto 277V.
• Remote mount up to 100 from the light source and light strip in a convenient location.
• Non-volatile memory restores all settings after power failure.
• Precision microprocessor control and integral thermal management deliver energy savings and extended product life (rated 50,000 hours).
• 100% performance tested at factory.

Dimming Solution for Meeting Room & Conference Room

Fusion of aesthetics and energy conservation

Digital Addressable Lighting Interface (DALI) Dimming

Universal Dimmer Grafic Integrale

4 Zone Dimmer applicable for any type of load (phase adaptive dimming / 0-10 V Dimmable/ DALI/ DSI).

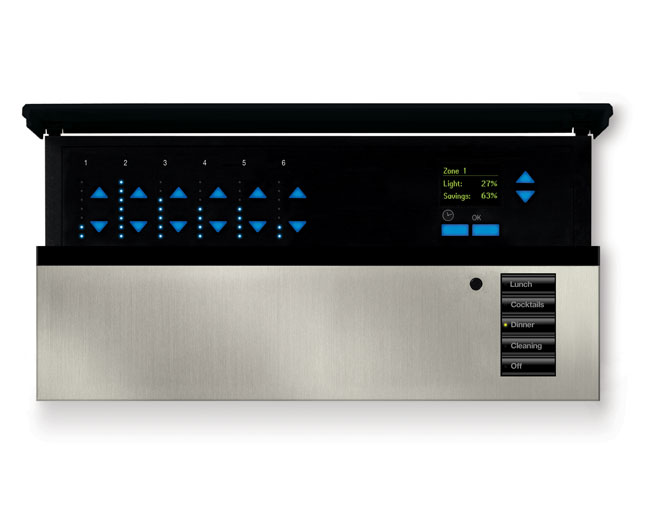

Grafik Eye QS Dimmer

Available in 3 Zone/ 4 Zone/ 6 Zone, Grafik Eye QS Dimmer is applicable for phase adaptive dimming. It is standalone dimming solution for meeting room and conference room. It has 3-6 zone for phase adaptive leading-edge type Dimmable lighting circuits having following features:

• Backlit
• Astronomical clock
• Engraving
• Can be integrated with wireless occupancy sensor, wireless keypad and daylight sensor
• Can be integrated with motorised shades without using any interface or third-party motorised shade wiring interface
• Possibility of scheduling

Energy Saver Node

Providing the best energy savings minus any compromises

Phase Adaptive Dimming Module

Automatically selects leading-edge or trailing-edge dimming for incandescent/halogen, electronic/magnetic low-voltage and neon/cold cathode light sources, having 4 zone capacity for phase adoptive type dimmable fixture.

Four multi-function inputs compatible with the following:

• Daylight sensors
• Occupancy sensors
• IR receivers

1. 0-10V/ Analog Dimming Module:

• A 4 zone 0-10V dimming module, 0-10 V rated for 50 mA source or sink current per zone.
• Two occupancy sensor inputs for automated control of lights in areas.
• Two daylight sensor inputs automatically adjust light levels based on the amount of natural light entering through the windows.
• Two IR receiver inputs for personal control.

2. Switching Module:

• A 4-zone switching module for any type of lighting fixture having load upto 10A per channel.
• Two occupancy sensor inputs for automated control of lights in areas.
• Two daylight sensor inputs automatically adjust light levels based on the amount of natural light entering through the windows.
• Two IR receiver inputs for personal control.

3. DALI Module:

The Energi Savr Node QS is a DIN-rail mounted controller for DALI-compliant Digital Addressable loads. It provides DALI bus power and control for two independent DALI loops with upto 64 ballasts each. The Energi Savr Node QS control unit also provides direct connections and power for the following Lutron devices:

• Occupancy sensors
• Daylight sensors
• IR receivers
• QS devices
